- ThermOmegaTech’s Thermal Bypass Valve with Pressure Relief combines two essential functions into one component. Equipped with a thermal actuator, the valve will modulate open and closed based on temperature changes.
- The built-in pressure relief safeguards the system from excessive pressure buildup. If the pressure exceeds a predetermined threshold, the relief valve opens, allowing fluid to escape and reducing pressure to a safe level.
- The TBV-PR can be integrated into a 4-way manifold to monitor and divert fluid based on temperature. Cooler fluid goes through the valve bypass, while hotter fluid goes through the system’s cooler.
- Exclusive Thermoloid® thermal actuator
- Integrated pressure relief
- Standard valve material is brass or stainless steel
- Reactive, compact, and low mass – fast response
- Corrosion-resistant, long service life
- Cooling Water Control for Radiator or Heat Exchanger
- Electronics System Cooling
- Engine and Compressor Cooling System
- Hydraulic Fluid or Lube Oil Cooling Systems
- Hydraulic Power Units (HPUs)
- Hydraulic or Lube Oil Thermal Bypass
- Loop-type Circulation Systems
- Self-operating – no external power source required
- Temperature control – controls fluids by sensing over-temperature thermal levels
- Built-in pressure relief simplifies installation and maintenance processes
- Wide temperature range available
- Minimal maintenance needed
- Few moving parts – reduce system wear
| Series | TBV-PR |
| Description | SAE-18-TBV-PR-XXX-S6-B-XXX |
| Diameter-in | 4.8 |
| Diameter-mm | 122 |
| Weight lb | 1.3 |
| Weight kg | 0.6 |
| Cv | 9.5 |
| Maximum Operating Pressure | 440 PSI (30.3 BAR) |
| Maximum Temperature | 150ºF (66ºC) over set-point limit 250ºF (149ºC) |
| L Closed in | 2.337 |
| L Closed mm | 59.4 |

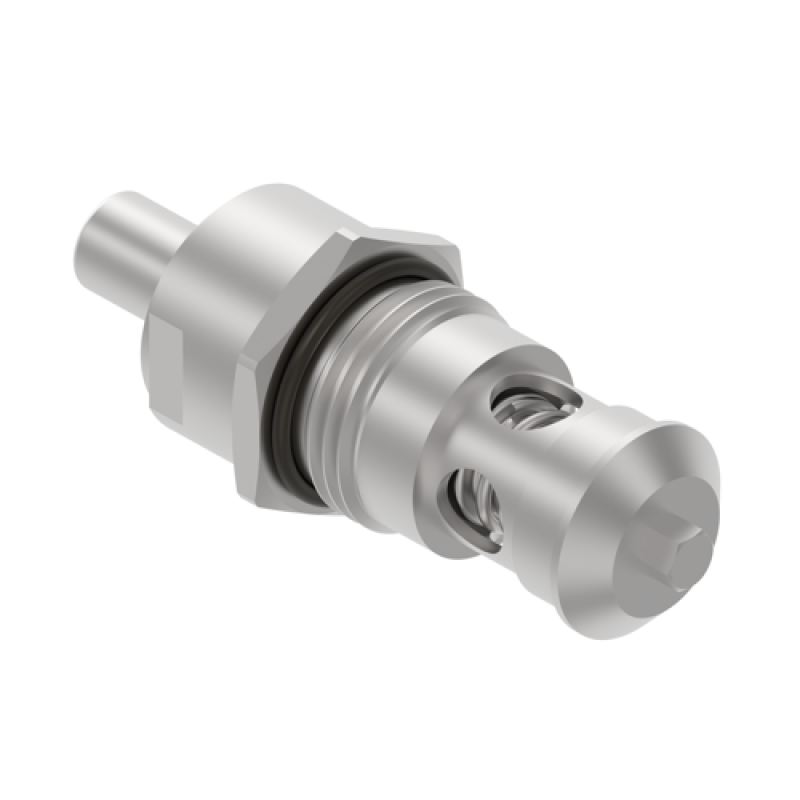

| Isometric View | Download |

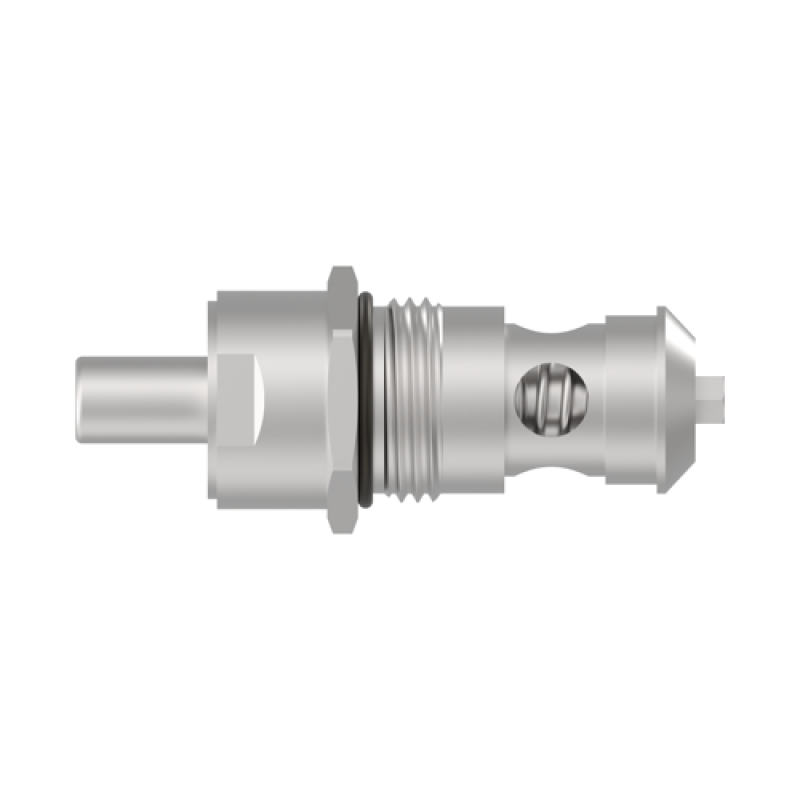

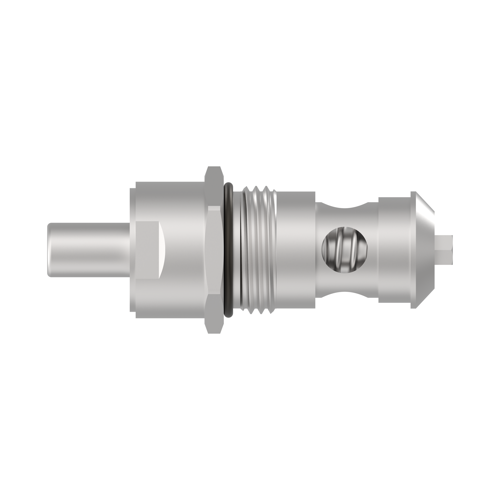

| Front View | Download |

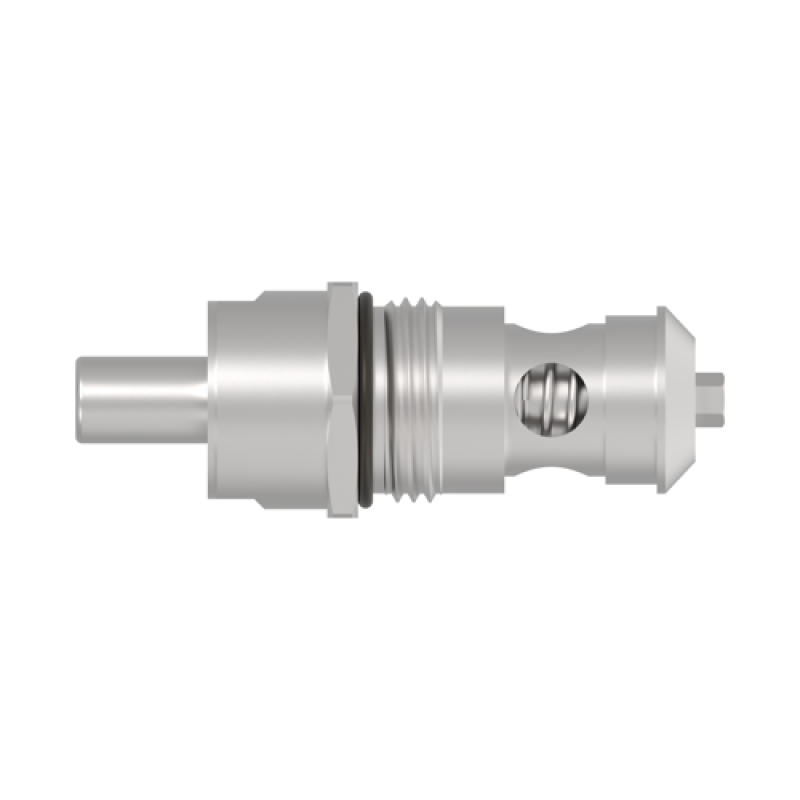

| Top View | Download |
| Side View | Download |
