The CircuitSolver® Union Assembly with Thermometer’s primary component is the CircuitSolver® which is a self-acting thermostatic recirculation valve that automatically and continuously maintains the end of each domestic hot water supply line at the specified water temperature. Since the CircuitSolver® responds to water temperature and controls flow to the return, it eliminates the need to manually balance the system.
- Self-actuating Thermoloid® wax blend thermal actuator
- Stainless-steel body and internal components
- Tamper-proof – fixed set-point
- Array of configurations
- High Cv
| Series | CSU-PX-TW |
| Description | 1" - CSU-PX-TW |
| Size | 1" NPT |
| Diameter-in | 2.4 |
| Diameter-mm | 61 |
| Length-in | 11.1 |
| Length-mm | 282 |
| Weight lb | 5 |
| Weight kg | 2.3 |
| Cv | 3.3 |
| Maximum Operating Pressure | 200 PSIG (14 BAR) |
| Maximum Temperature | 250°F (121°C) |

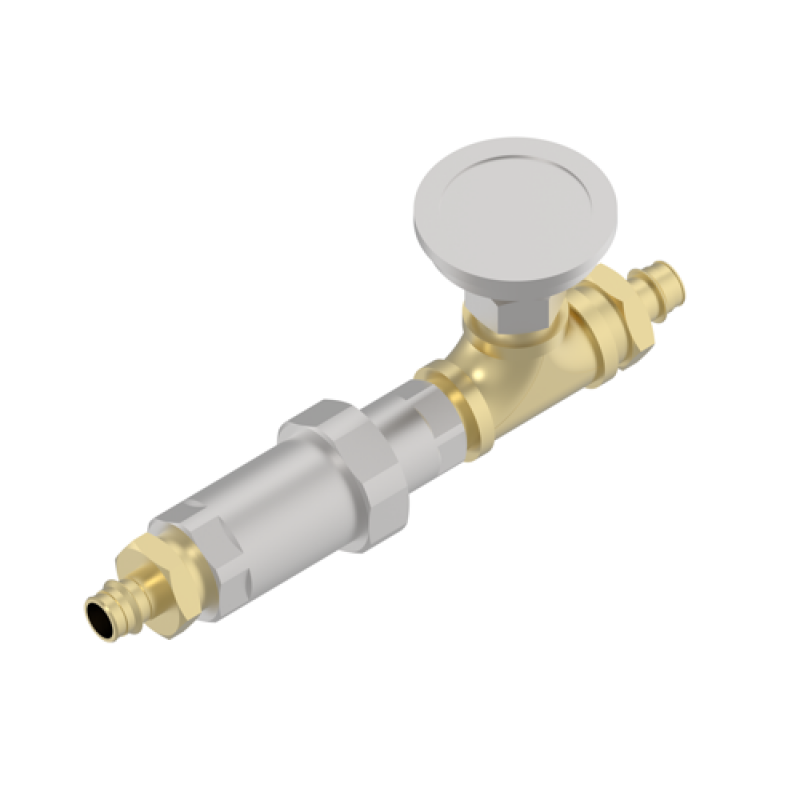

| Isometric View | Download |

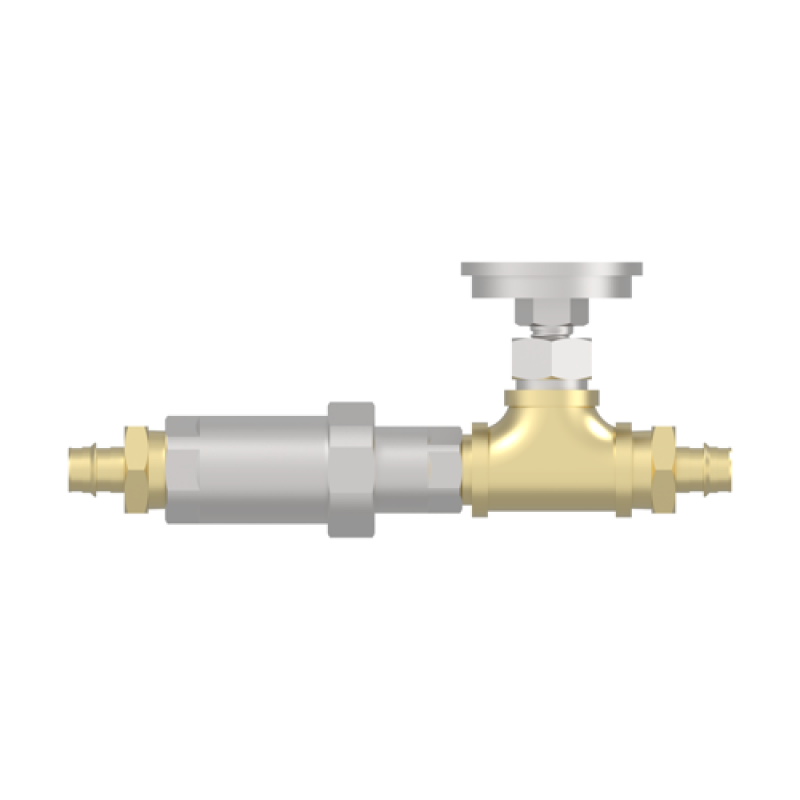

| Front View | Download |

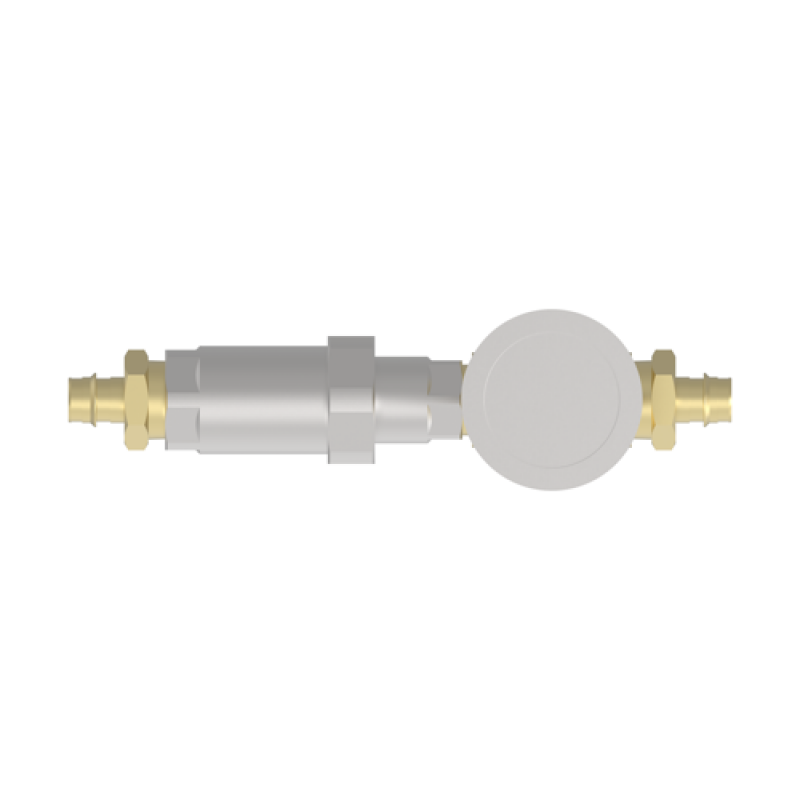

| Top View | Download |

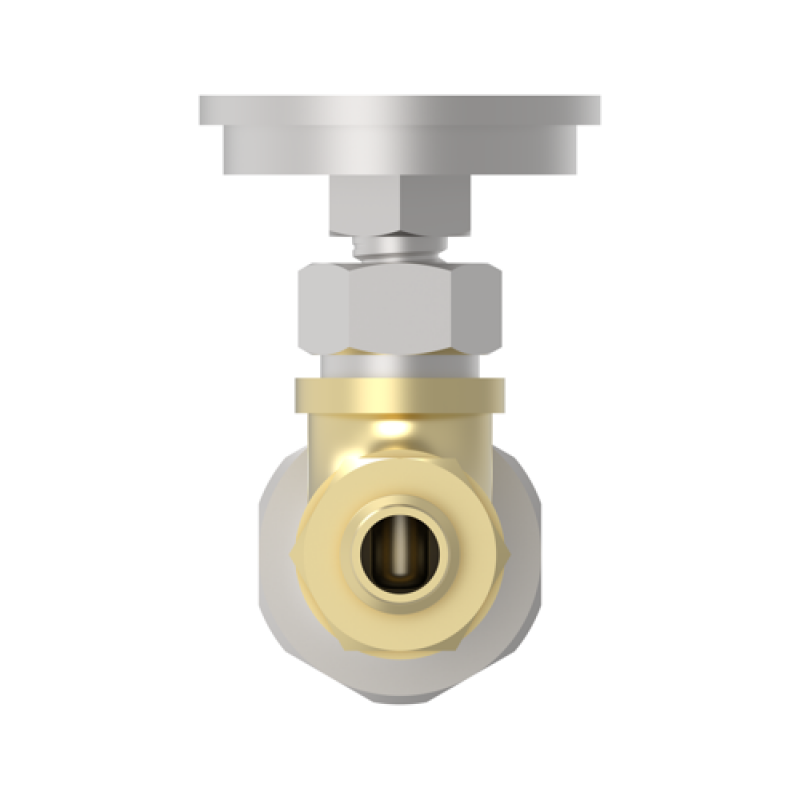

| Side View | Download |
