The CircuitSolver® Union Assembly with Thermometer’s primary component is the CircuitSolver® which is a self-acting thermostatic recirculation valve that automatically and continuously maintains the end of each domestic hot water supply line at the specified water temperature. Since the CircuitSolver® responds to water temperature and controls flow to the return, it eliminates the need to manually balance the system. The featured strainer (20 mesh) must be maintained in order to avoid flow obstruction.
- Self-actuating Thermoloid® wax blend thermal actuator
- Stainless-steel body and internal components
- Tamper-proof – fixed set-point
- Array of configurations
- High Cv
| Series | CircuitSolver® Union Assembly with Strainer, WDV & Thermometer |
| Description | 3/4" - CSUAS With Webstone Drain Valve and Thermometer |
| Size | 3/4" NPT |
| Diameter-in | 2 |
| Diameter-mm | 51 |
| Length-in | 15.3 |
| Length-mm | 389 |
| Weight lb | 6.2 |
| Weight kg | 2.8 |
| Cv | 1.8 |
| Maximum Operating Pressure | 200 PSIG (14 BAR) |
| Maximum Temperature | 250°F (121°C) |

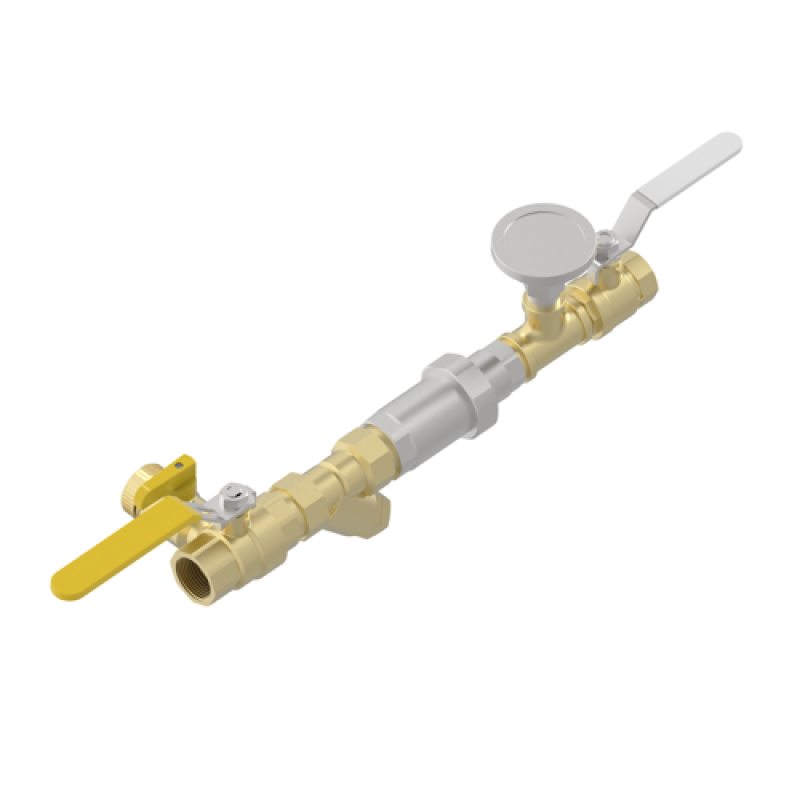

| Isometric View | Download |

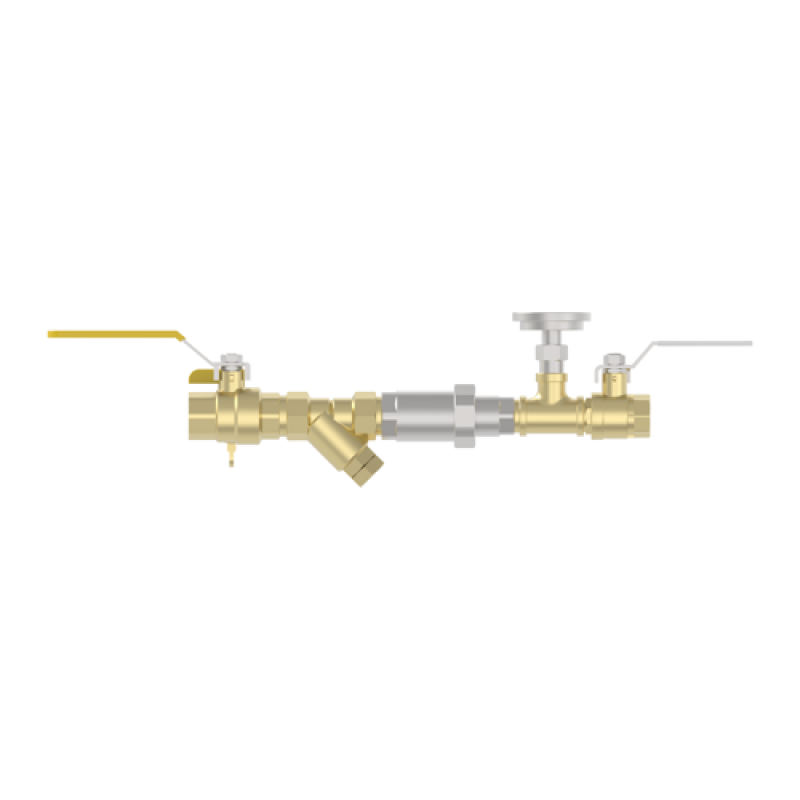

| Front View | Download |

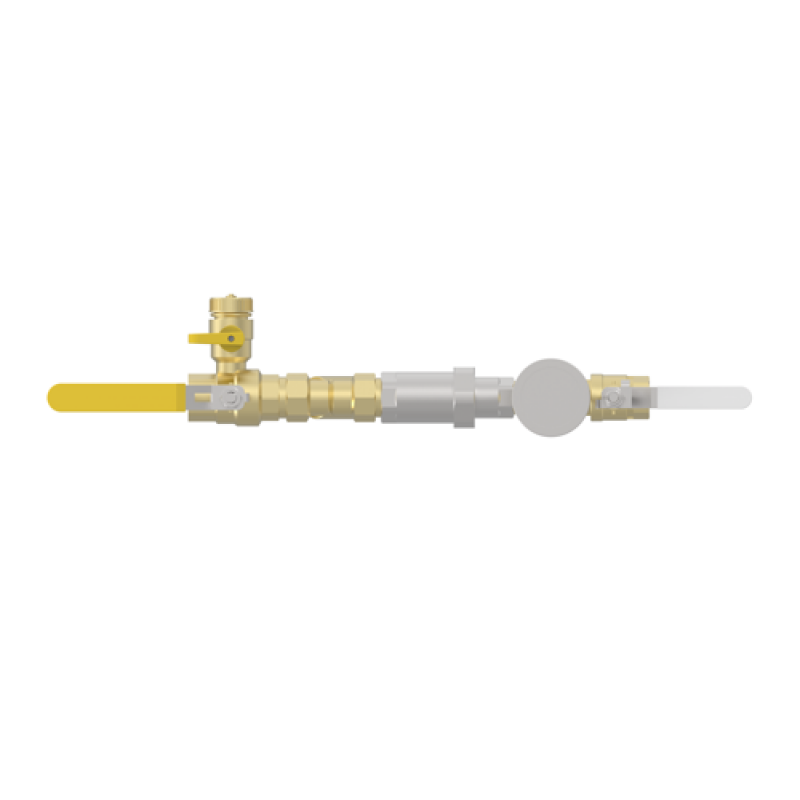

| Top View | Download |

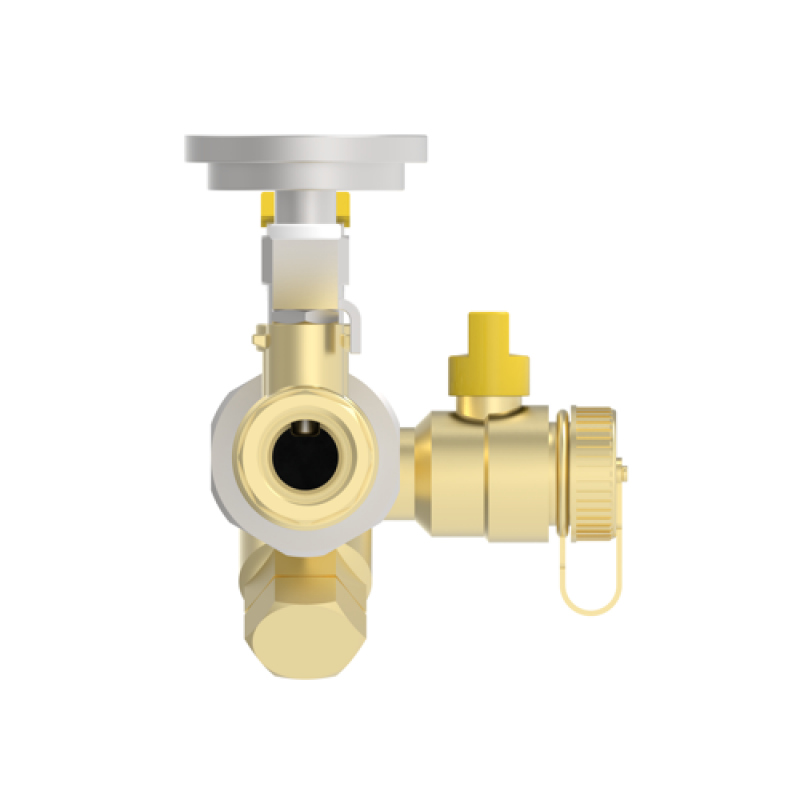

| Side View | Download |
